Emergent Vision Technologies

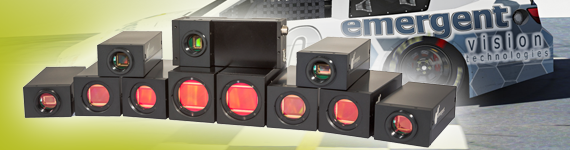

Emergent Vision cameras are available with resolutions of 2, 4, 12, and 20 megapixels in monochrome, color, or near-infrared enhanced (NIR) with full frame rates of up to 338fps, 179fps, 84fps, and 32fps respectively (we can also provide taped on glass). As the first 10GigE industrial digital camera series in the world, our HS and HT cameras (coming soon) obtain their high performance from industrial CMOS sensors with Global Shutter technology in combination with the cross-industry standard 10 Gigabit Ethernet (10GigE) interface. This ensures blur free images of fast moving objects, high dynamic range (even under low-light conditions), and an overall lower system costs due to our unbeaten price-performance ratio and compatibility with standard IT equipment.  Our cameras are GigE Vision and GenICam Compliant and can run on Windows 64bit or Linux platforms.

HS-2000 BROCHURE  |  HT-2000 BROCHURE

The HS-2000/HT-2000 series with its 2MP (2048 x 1088) resolution features square pixels that are especially attractive for the optical analysis of fast moving circular and square objects. Like all Emergent Vision cameras, the HS-2000 offers various triggering modes for the precise synchronization at <1µs.  Thanks to its CMOS Global Shutter technology, the frame rate can be increased to over 17700 frames per second, providing a crisp, blur-free image signal with high dynamic range.

  • 2 Mega Pixel CMOS Sensor @ 338fps
  • Resolution 2048 x 1088
  • Pixel Size: 5.5um x 5.5um
  • Color, Mono, NIR & Right-Angle versions available
  • Global Shutter
  • 8/10 Bit Data Output
  • HS-2000 - 10 Gigabit Ethernet (10GigE) video interface with SFP+ sockets for cost-effective optical modules or Direct Attach copper cables
  • HT 2000 - 10GigE via RJ45 Connector to CAT6A Cable - 1M to 100M
  • GigE Vision, GenICam, CE, FCC, RoHS, WEEE Standard compliant.
  • C-Mount

HS-4000 BROCHURE  |  HT-4000

The HS-4000/HT-4000 with its 4MP (2048 x 2048) resolution features square pixels that are especially attractive for the optical analysis of fast moving circular and square objects. Like all Emergent Vision cameras, the HS-4000/HT-4000 offers various triggering modes for the precise synchronization at <1µs.  Thanks to its CMOS Global Shutter technology, the frame rate can be increased to over 17700 frames per second, providing a crisp, blur-free image signal with high dynamic range.

  • 4 Mega Pixel CMOS Sensor @ 179fps
  • Resolution 2048 x 2048
  • Pixel Size: 5.5um x 5.5um
  • Color, Mono, NIR & Right-Angle versions available
  • Global Shutter
  • 8/10 Bit Data Output
  • HS4000 - 10GigE video interface with SFP+ sockets for cost-effective optical modules or Direct Attach copper cables
  • HT4000 - 10GigE via RJ45 Connector to CAT6A Cable - 1M to 100M
  • GigE Vision, GenICam, CE, FCC, RoHS, WEEE Standard compliant.
  • C-Mount

HS-12000 BROCHURE  |  HT-12000 BROCHURE

The HS-12000/HT-12000 with its 12MP (4096 x 3072) resolution features square pixels that are especially attractive for the optical analysis of fast moving circular and square objects. Like all Emergent Vision cameras, the HS-12000 offers various triggering modes for the precise synchronization at <1µs.  Thanks to its CMOS Global Shutter technology, the frame rate can be increased to over 15720 frames per second, providing a crisp, blur-free image signal with high dynamic range.

  • 12 Mega Pixel CMOS Sensor @ 34fps
  • Resolution 4096 x 3072
  • Pixel Size: 5.5um x 5.5um
  • Color, Mono, NIR & Right-Angle versions available
  • Global Shutter
  • 8/10 Bit Data Output
  • HS-12000 - 10 Gigabit Ethernet (10GigE) video interface with SFP+ sockets for cost-effective optical modules or Direct Attach copper cables
  • HT-12000 - 10GigE via RJ45 Connector to CAT6A Cable - 1M to 100M
  • GigE Vision, GenICam, CE, FCC, RoHS, WEEE Standard compliant.
  • M52 or F-Mount

HS-20000 BROCHURE  |  HT-20000 BROCHURE

The HS-20000 with its 20MP (5120 x 3840) resolution features square pixels that are especially attractive for the optical analysis of fast moving circular and square objects. Like all Emergent Vision cameras, the HS-20000 offers various triggering modes for the precise synchronization at <1µs.

  • 20 Mega Pixel CMOS Sensor @ 32fps
  • Resolution 5120 x 3840
  • Pixel Size: 5.5um x 5.5um
  • Color, Mono, NIR & Right-Angle versions available
  • Global Shutter
  • 8/10 Bit Data Output
  • HS-20000 - 10 Gigabit Ethernet (10GigE) video interface with SFP+ sockets for cost-effective optical modules or Direct Attach copper cables
  • HT-20000 - 10GigE via RJ45 Connector to CAT6A Cable - 1M to 100M
  • GigE Vision, GenICam, CE, FCC, RoHS, WEEE Standard compliant.
  • M52 or F-Mount
