Allied Vision delivers camera solutions for industrial inspection, medical and scientific imaging, traffic monitoring and many more applications for every project that is unique and has its own technical challenges. Allied Vision has raised production standards for precision and truth in vital factors in every situation from detecting disease faster or simply knowing who crossed the finish line first.

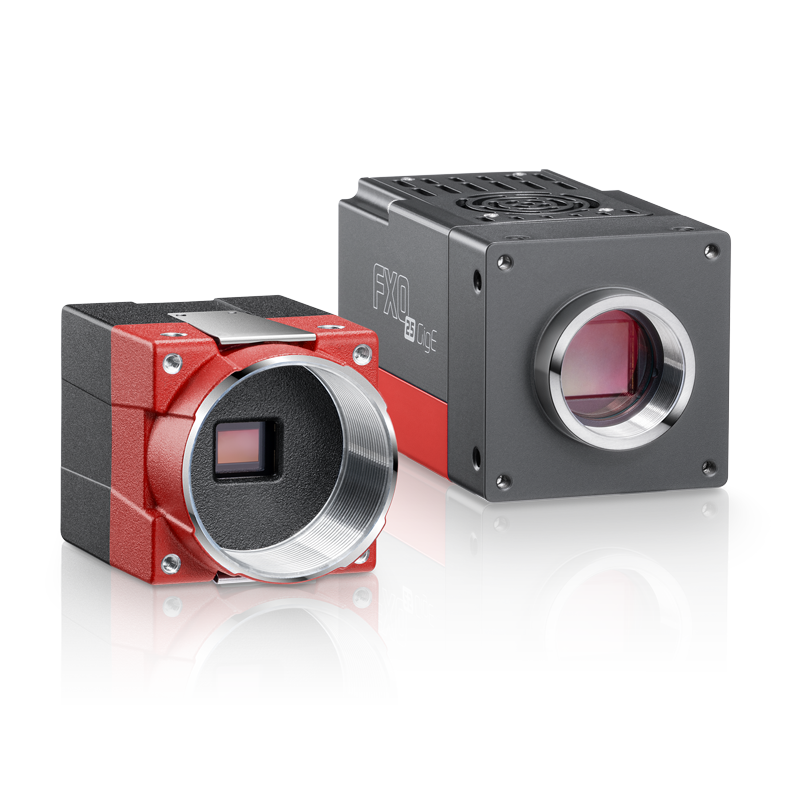

Allied Vision Area Scan Cameras from Systematic Vision

Area Scan Cameras

Precise Imaging with Area-Scan Cameras for Industry

Discover the benefits of area-scan cameras for your industrial applications. These cameras capture images in a wide spectrum, ideal for inspections, quality control, and process monitoring. With high resolution and speed, they are perfect for applications where detailed images are required. Our area-scan cameras are suitable for various industries such as automotive, food, and pharmaceuticals.

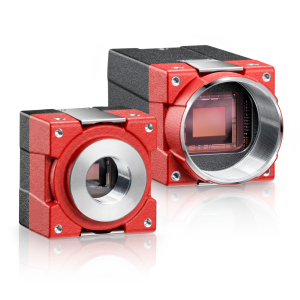

Alvium

More than 200 camera models to chose from

Resolution: 0.3 - 24.6MP

Speed: 5 - 689fps

Spectral Range: 200 - 1700nm

Interfaces: GigE, 5GigE, USB3, CSI-2, GM2/GMSL2, FP3/FPD-Link III

  • Long-term availability

  • Easy migration

  • Fast prototype development

  • Easy system integration

  • Small form factor, low weight

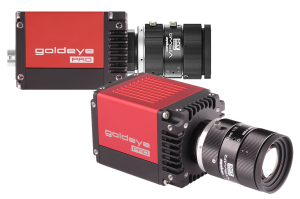

Goldeye Pro

5 GigE SWIR cameras for outstanding imaging results

Allied Vision Goldeye Pro from Systematic Vision

Resolution: 1.3 - 5.32MP

Speed: 115 - 159fps

Spectral Range: 400 - 1700nm

Interface: GigE

  • High-bandwidth 5GigE Vision

  • Visible to shortwave infrared sensitivity

  • Efficient thermoelectric cooling (TEC1)

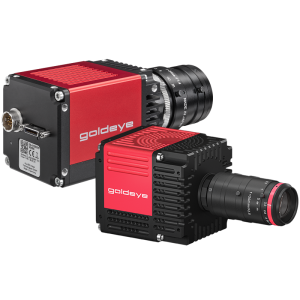

Goldeye SWIR

Shortwave infrared (SWIR) cameras with InGaAs sensor

Allied Vision Goldeye SWIR cameras from Systematic Vision

Resolution: 0.08 - 1.3MP

Speed: 84 - 344fps

Spectral Range: 400 - 2200nm

Interfaces: GigE, 5GigE, USB3, CSI-2, GM2/GMSL2, FP3/FPD-Link III

  • Scientific precision, industrial quality

  • Broad infrared sensitivity up to 2.2um

  • Efficient thermoelectric cooling (TEC1 or TEC2)

Prosilica GT

  • 1.3 to 29 Megapixels

  • CCD and CMOS (Sony, ON Semi, CMOSIS/ams)

  • Up to 62.1 fps

  • Extended operating temperature

Bonito PRO

  • 12.5 to 26.2 Megapixels

  • CMOS sensors (ON Semi)

  • Up to 142.6 fps

  • CoaXPress CXP-6

Goldeye

  • QVGA and VGA Resolution

  • InGaAs sensors

  • Up to 344 fps

  • Spectral range 900 - 1700 nm (SWIR)

Embedded Vision Cameras

Alvium 1500 Series

The perfect camera for easy vision in embedded applications. Extremely power efficient and easy hardware and software integration.

Camera control:

  • Video4Linux2 (V4L2)

  • Direct Register Access (DRA)

Software integration:

  • Open source: Allied Vision Vimba drivers provided for NXP i.MX 6

  • Coming soon: drivers provided for NXP i.MX 8 and NVIDIA Jetson

  • Flexibility: Each driver supports all current and future Alvium MIPI CSI-2 cameras regardless of sensor, model and feature set.

Alvium 1800 Series

Bridging the gap between embedded vision and machine vision. Our machine vision camera with a basic feature set includes various triggering options.

Camera control:

  • GenICam

Software integration:

  • Allied Vision Vimba for ARM Software Suite with SDK, tools and programming examples for easy camera configuration and control.

  • Compatible with GenICam-compliant third party image processing libraries
